alphaWOLF™ single motor rwd
Battery Electric Light Duty Truck
Starting MSRP: US$36,000 - US$46,000*
*Price does not include potential savings of up to US$7,500 in federal EV tax credits and additional state EV tax incentives. Information is provided for illustrative purposes only and subject to change. Additional exterior lighting attachments and accessories are not included. Detailed information on WOLF™ will be provided as it becomes available.
**Specifications are projected estimates.
UNLOCK NEW ADVENTURES
Target Specifications
Country of Production: United States
Body Type: Truck (2 Door Cabin w/ Load Bed)
Seating: Single Row (Driver and Passenger)

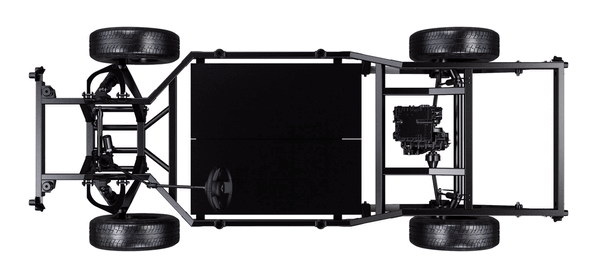

Technology: E-Grid Platform
Powertrain: 350V - 400V Battery Electric
Battery: Lithium-Ion NMC (45kWh-100kWh)
Range: 250mi - 350mi
Drive Configuration: Single Motor RWD
Dimensions: 4828mm x 1872mm x 1768mm (L x W x H) (190in x 73in x 1768in)
Wheelbase: 2780mm (109in)
Tire Size: 265/70 R17
Ground Clearance: 241mm (9.5in)
Brakes: Regenerative / Disc
Suspension: Independent Front Suspension / Rear Leaf Springs
Gross Vehicle Weight: 1,814kg (4,000lbs)
Load Bed Dimensions: 1828mm x 1490mm x 450mm (L x W x H)
110V Load Bed Outlet
Towing Capacity: 1360kg (3000lbs)
Acceleration: 4.8s (0-60mph)
Max Speed: 125mph
Motor Type: Permanent Magnet Synchronous Motor (PMSM)
Power (Peak/Continuous): 100-150 / 75 (kW)
Torque (Peak / Continuous): 350 / 160 (Nm)
Max Motor Speed: 15,000 (rpm)
Weight: Motor 45 (kg)
Gearbox Type: 2 Stage Spur Gear with Differential
Gear Ratio: 9.53, 8.5
Torque (Peak / Continuous): 3,335 / 1,524 (Nm), 2975 / 1360 (Nm)
Max Speed: 1,574 (rpm), 1,746 (rpm)
Peak Efficiency of EDU: >94% @ Motor
Power Electronic: PE250
11kW On-Board Charger
OBC As V2L/V2G
3kW DC-DC Converter
DC Fast Charge
ISO 15118 Compatible
LED Headlights (Daytime Running Lights)
Center Digital Display
USB and Bluetooth Connectivity
Digital Sound System
Dual 12oz Cup Holders
Rear Sliding Window
9.5ft³ Front Cargo Space
Exterior Colors
Base Exterior Color: Big Bear
Optional Exterior Colors (Left to Right): Cerro Blanco*, Abbot Kinney*, Adventure Armor*
*Optional Colors
Interior Finishes
Black Fabric
Grey PU*
*Optional Finishes
Wheel Options
Wheel (Left to Right): 17” Alloy Dish, 17” 5 Spoke
Tire: 265/70 R17
Charging
Wall Connector
Wireless Connector
110V NEMA 5-15 20ft Charging Cable
